air preheater in thermal power plant - function , construction , working ,advantage , disadvantage

definition of air preheater

air preheater increase the temperature  of the air. It is most commonly used in thermal power plant. And it is increase the efficiency of the boiler.

Working of air preheaters (APH)



1. The hot fuel gas from the economist first enters the air preheater. Then those gases go through the tube to the chimney. The air mass then enters the preheater through the air inlet.

2.  Then both air and fuel gas flow in opposite directions.
3. baffles are provided in the air preheater to provide more time for exchanging heat from fuel gas to air
4. thus heat is absorbed by the air from the fuel gas.
5. this preheater air is supplied to the furnace.



construction

 1. A tubular type air preheater is a large number of tube .
2. the fuel gas pass through the tube.
3. air flows over the tube.
4. baffles are provided to pass the air b number of time over the tube.
5. a soot hopper is provided at the bottom to collect the soot .

type of air preheater

the air preheater are basically two type

1. Tubular type air preheater
2. Rotational type air preheater

now tubular type air preheater is two type

1.horizontal tubular type
2. vertical tubular type

and rotational type air pre heater are two type

  • Rotating baskets
  • Rotating hood


function of air preheater

air preheater increase the temperature of the air in boiler.
it is increase the efficiency of the boiler
The primary capacity of the air preheater is to preheat the air which implies the temperature of the information air is expanded. Different adornments like economizer and superheater in a heater do a comparative capacity. This preheating system of air is done before it enters the heater. The air preheating process is finished with the assistance of hot vent gases.

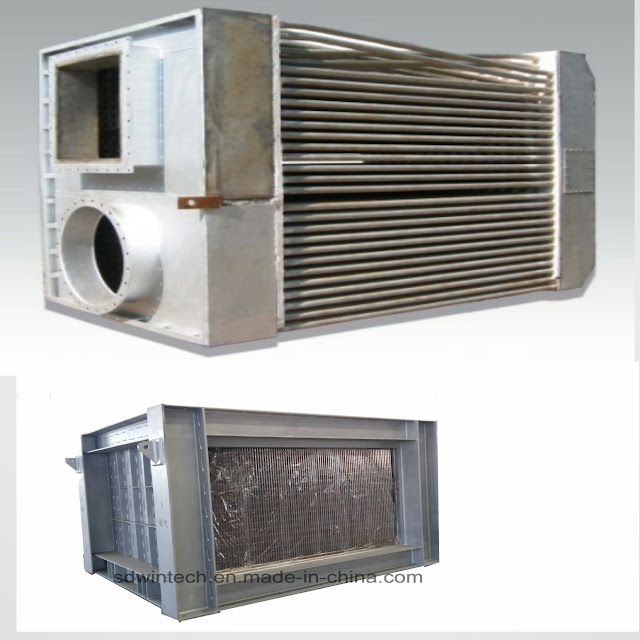

Air preheaters


location of air preheater

air preheater is installed between chimney and economizer and stay every mordern boiler.
it is increase the efficiency of boiler.


advantage of air preheater

1. air pre heater increase the efficiency of boiler

2. It is use as  source for heating air

3. Fuel use is decreased.

4. Quality ignition is accomplished.


disadvantage of air preheater


1. corrosion use

2. high gas velocity
